Circular Inner Round Internal Ring Disc Brush Seal

AOQUN is a large-scale high-quality customized Internal Brush Seal manufacturing company combining design, development, production, sales and service. The Round Strip Brush Seal can be formed to cylinder brushes, inside disk brushes, outside disk brushes, cup brushes, etc.
  • product origin:

    Guangzhou, Guangdong, China
  • brand:

    AOQUN
  • item no.:

    Spiral Brush
  • shipping port:

    Guangzhou(Huangpu)
  • color:

    Black Bronzed Brown Champagne Coffee Golden Yellow
  • lead time:

    7 days after payment received
  • payment:

    L/C, T/T, Western Union, Paypal
  • product details

Circular Inner Round Internal Ring Disc Brush Seal


Ⅰ. Product Description


Aoqun internal brush seal are made by taking a flat piece of galvanized steel, stainless steel or aluminum, laying filaments perpendicular to the sheet metal then laying a central wire parallel to the sheet metal and then clamping the sheet metal around the retaining wire. The strip brushes can be formed to cylinder brushes, inside disk brushes, outside disk brushes, cup brushes, etc.

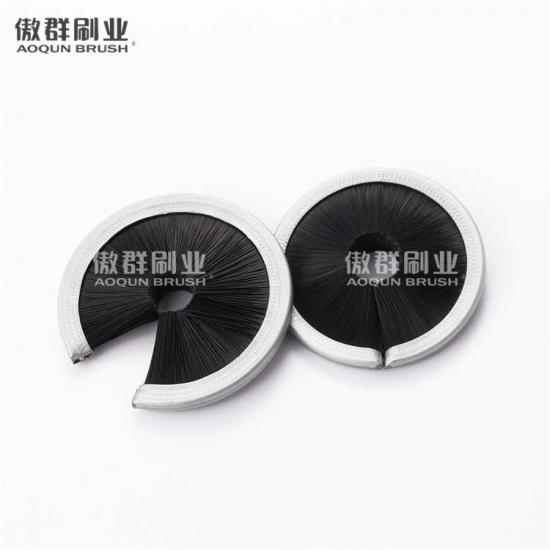

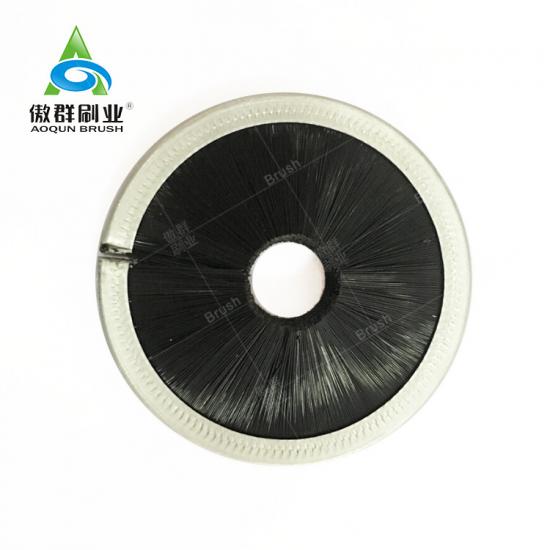

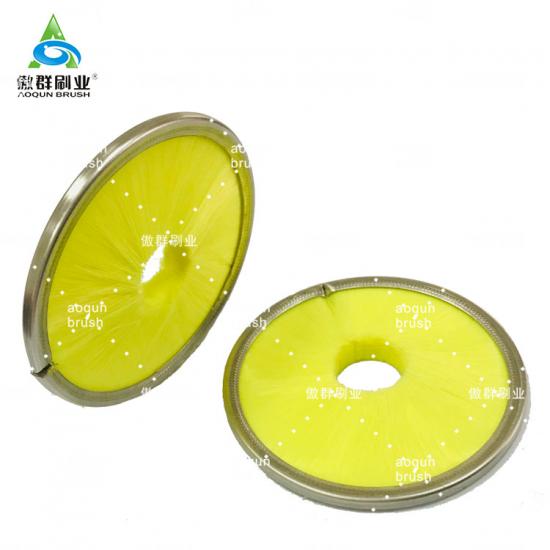

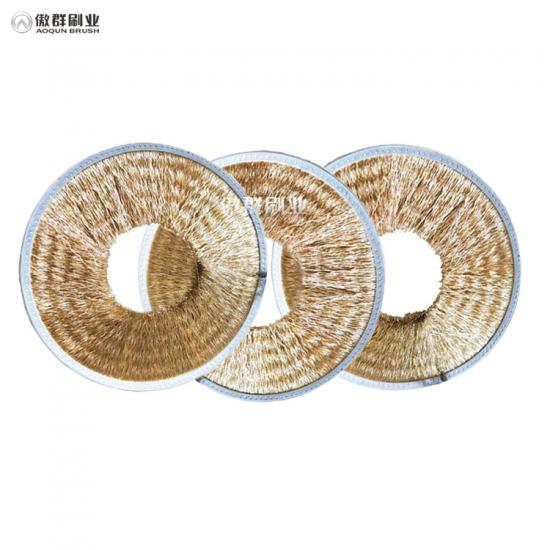

Aoqun Internal Brush Seal

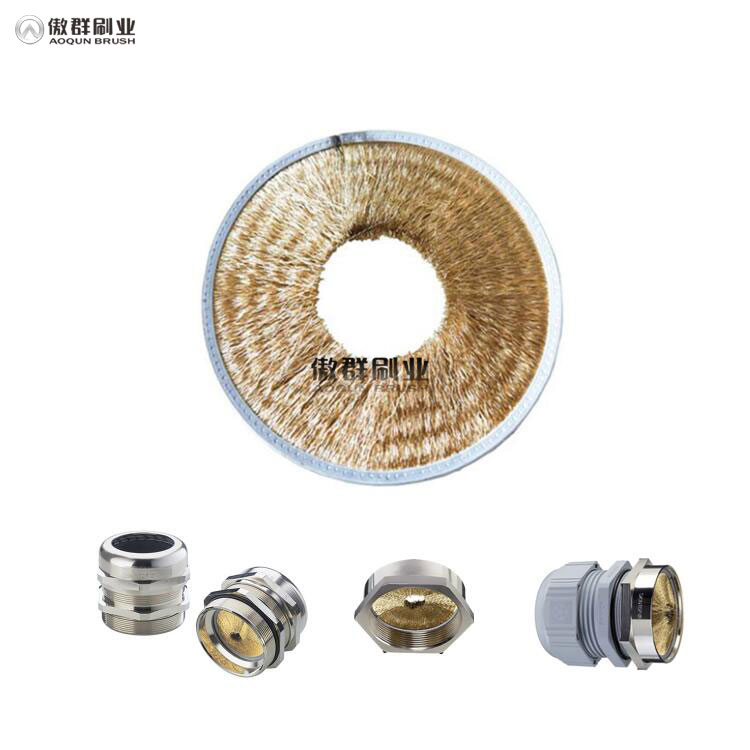

Cable Glands Round Spring

Disc Brush Seal FormingRound Brush Seal Material


Ⅱ. Brush Specifications


The Internal Brush Seal: inverted arcs (filaments pointed inward) and external arcs (filaments pointed out) are available. Channel sizes are galvanized and stainless steels. The minimum arc outside radius (OR) or inside radius (IR) depends on channel size and channel material. A wide range of synthetic, natural and metal filaments are available.

Ring Brush Seal Drawings

Specification

 Product Name

Circular Inner Round Internal Ring Disc Brush Seal

 Product No. Spiral Brush
 Material PA,PP,PE,PET,PBT,Animal hair
 Outer roller brush Mini ID Φ 5
 Side roller brush Mini ID Φ 6
 Inner roller brush Mini OD Φ 20
 Certificate ISO9001, ROHS, SVHC, UL94
 Application Polishing,Cleaning
 MOQ 100 Pieces
